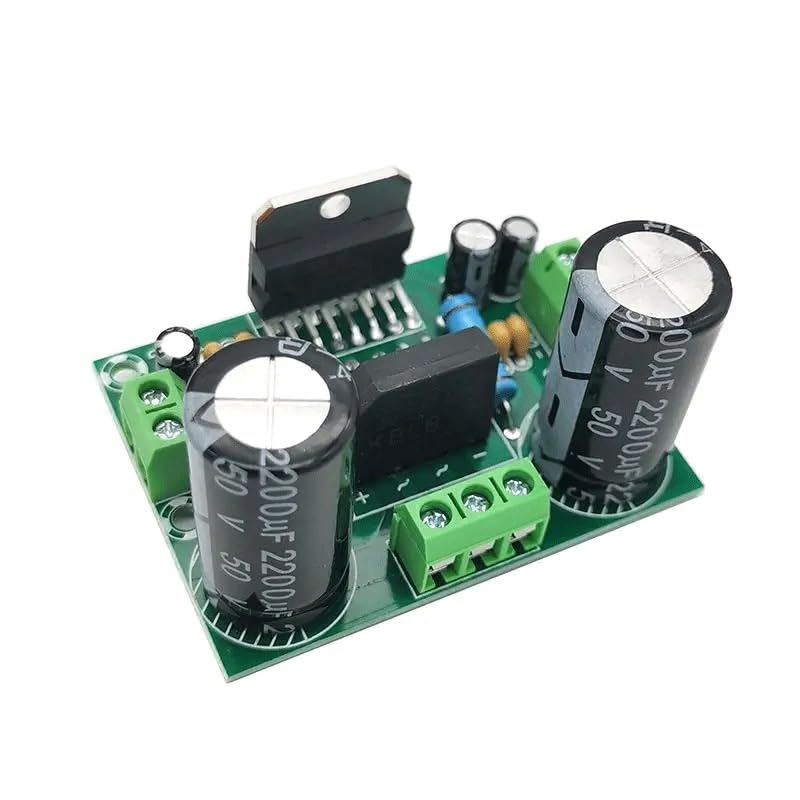

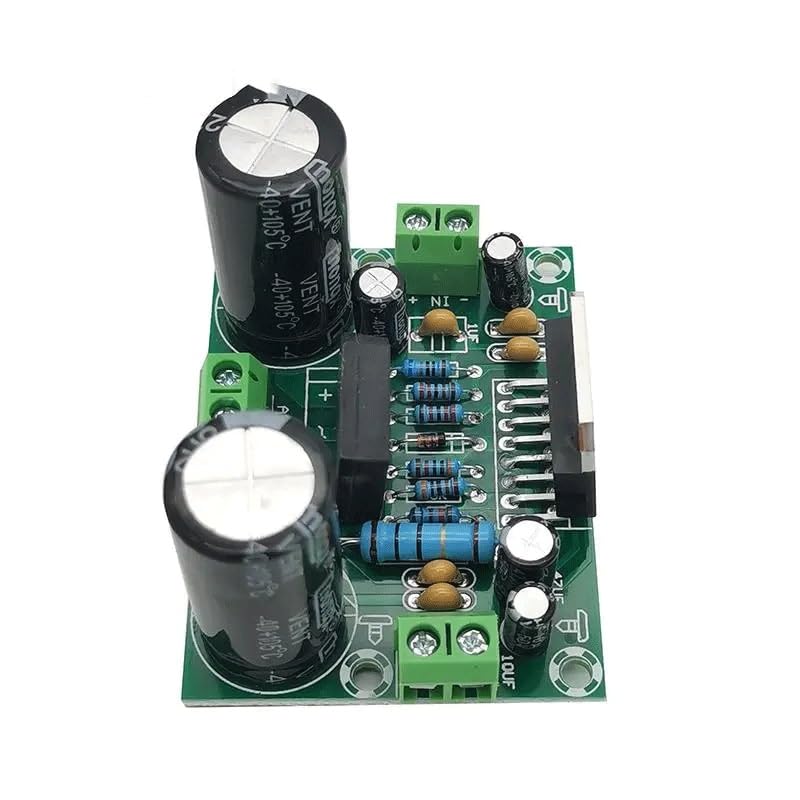

Digital Power Amplifier Board High Power Single Channel Audio Amplifier Module for Speaker
Product details
| Management number | 212338507 | Release Date | 2026/04/06 | List Price | US$56.90 | Model Number | 212338507 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

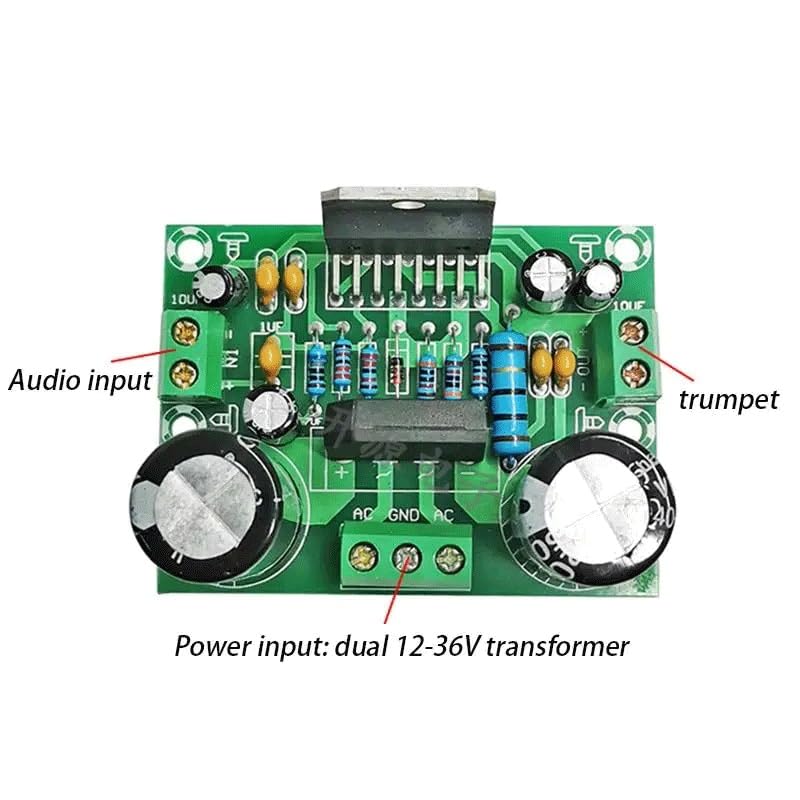

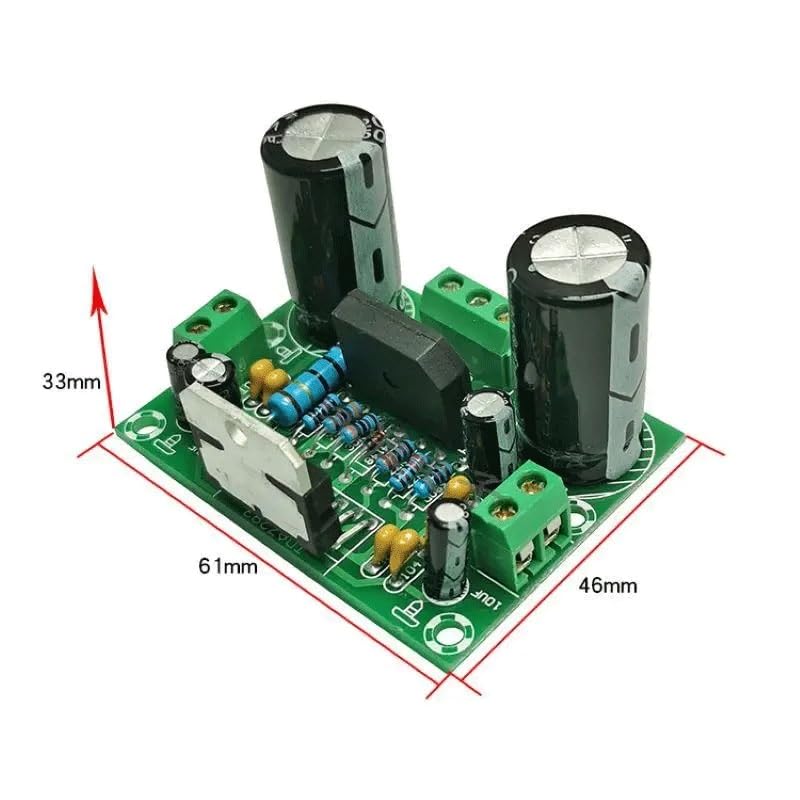

Using TDA7293 chip, with good sound, low noise characteristics.The filter adopts 50V 2200uf large electrolytic capacitor.Mono digital audio power amplifier board.High power output, low power consumption.Applicable speaker impedance :4-8 ohms (8 ohms is the best).Specifications:Channel type: monoLoad type :4-8 ohms speakerPower supply: AC 12-32VInput impedance :100KΩOutput power: Maximum 100WFrequency range :20Hz-20KHzConversion rate :15V / μsPCB board size :60 * 45 * 35mm / 2.36 * 1.81 * 1.4Weight :48 g / 1.69 ozPacking list: Audio Amplifier *1 (excluding other exhibits)Notes:Due to manual measurement, please allow an error of 2-3 cm.The actual color may be slightly different from the picture due to different lighting.Chip protection, overvoltage undervoltage overheat DC short circuit detection.
- Using TDA7293 chip, with good sound, low noise characteristics.
- The filter adopts 50V 2200uf large electrolytic capacitor.
- Mono digital audio power amplifier board.
- High power output, low power consumption.
- Applicable speaker impedance :4-8 ohms (8 ohms is the best).
- In the event of an overload, the device reports the fault to the processor, thus avoiding damage to itself.
| Model | PGNEX |
|---|---|
| Unit Count | 1.0 Count |
| Item Weight | 1300 Grams |
| Manufacturer | PGNEX |
| Material Type | resin |
| Number of Channels | 1 |
